Product details

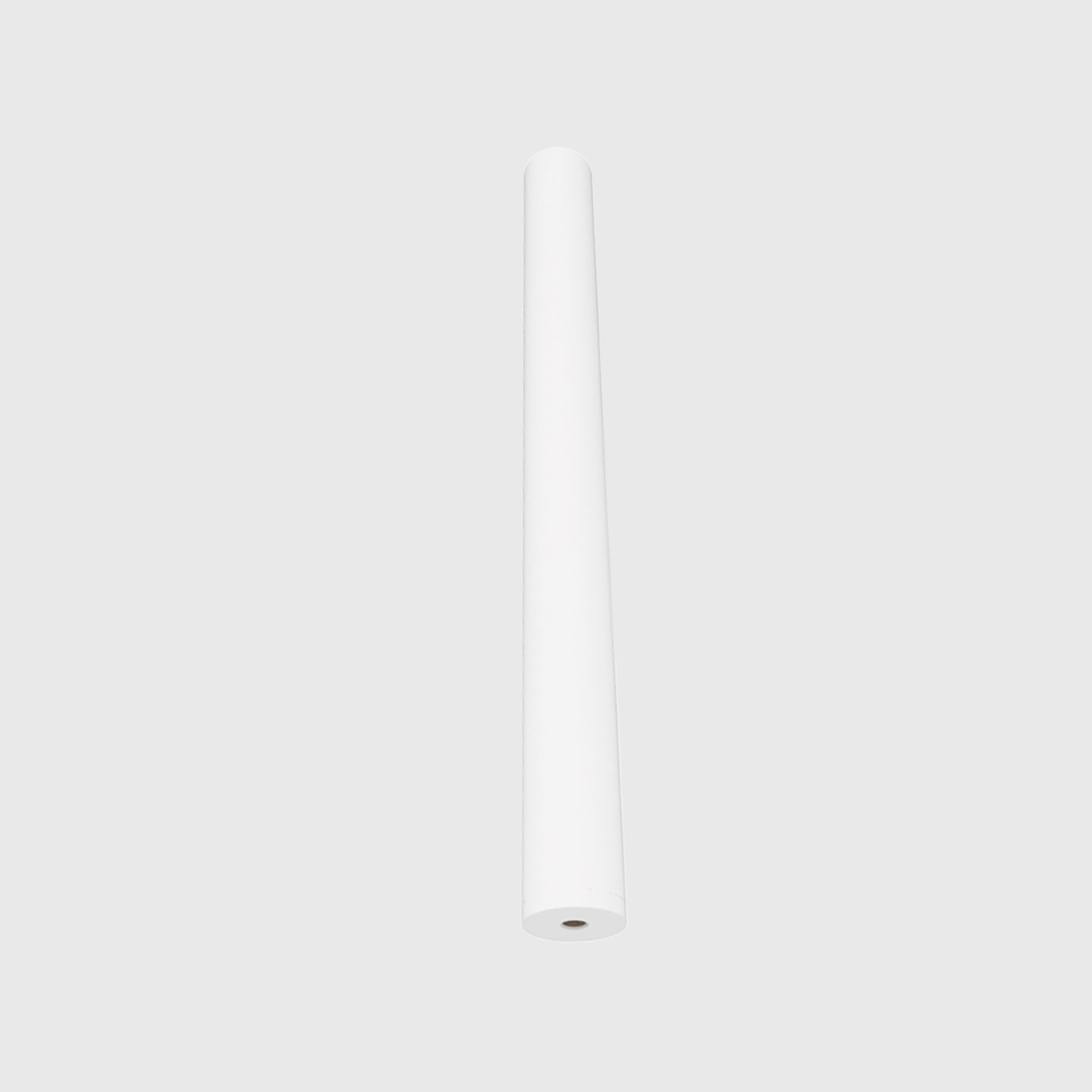

GENERAL Invisibility of light source and minimalistic design of this surface mounted downlighter makes it attractive as an architectural element, whilst high optical and electrical efficency makes it usable lighting design tool.

OPTICS Lens made of PMMA, retracted from the bottom surface of the luminaire, emitting light through perforation on the surface. Retraction from the perforation enables invisibility of the light source, providing full visual comfort.

LIGHTING MANAGEMENT The choice of appropriate control gear enables integration into lighting management systems, including dynamic white function.

HOUSING Housing is made of extruded aluminium tube. Finish: epoxy polyester powder coating. Fine structured texture. Other colours available upon request.

FEATURES The complex geometry of the lens enables colour mixing into dynamic white function.

ADDITIONAL Other light colour temperatures available upon request.

Technical data

Ceiling mounted
White finestructured paint
Gray finestructured paint
Black finestructured paint
CE
Zapaljivost F
CLASS 1
IP20
220-240V
50-60Hz
LED
* Please select the row to enable viewing and downloading of additional material.
Order code Description Ø/H[mm] WEIGHT [kg] FLUX [lm]* IP UGR Total Power [W] CCT [K] CRI Led Service Life
2211111XY PIKO /C 60dg /840 45 /500 0.70 240 60° IP20 <16 4.7 4000 >80 50000h L80B10 /SCDM3
* Luminaire luminous flux and connected electrical load - initial tolerance of ±10 % (at ambient temperature of 25° C).
