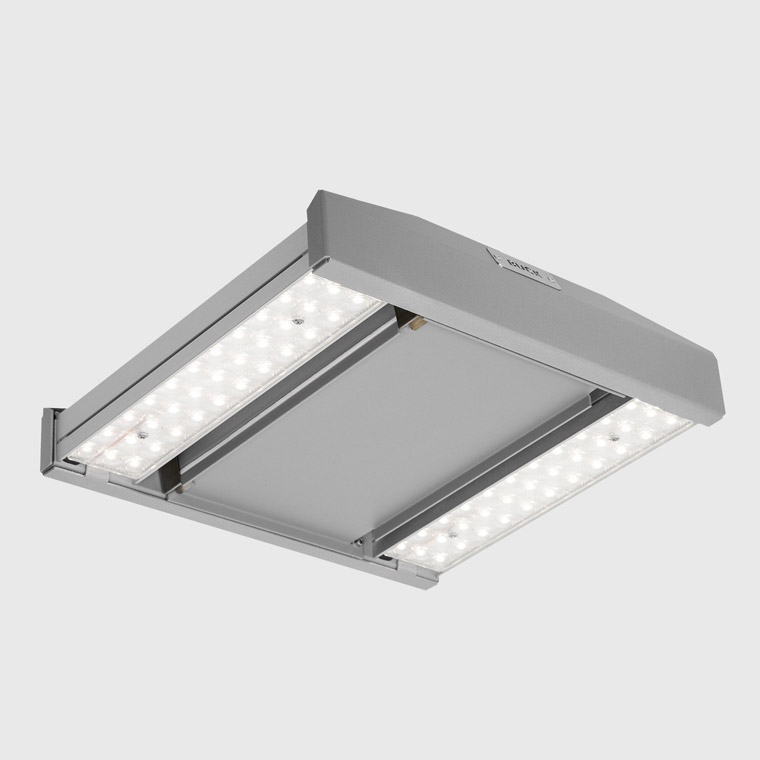

TANGRAM HB2

Product details

GENERAL Multifunctional high- bay LED floodlight intended for mounting above 6 m of height. High efficacy is ensured with high efficiency optical and electronic components.

OPTICS The desired light distribution can be obtained by choosing the precisely defined optics from vast range of available lenses.

LIGHTING MANAGEMENT The choice of appropriate control gear enables management with analog dimming 1-10V, while DALI enables connection and management in central management system. Also available in autonomous operation mode.

HOUSING Housing is made of combination of marine grade aluminium sheet and extruded aluminium profile. Other mechanical parts are made of stainless steel. Finish: epoxy polyester powder coating. Fine structured texture.

FEATURES Open design and robust heat sinks ensure safe operating and longevity on high ambient temperatures.

ADDITIONAL Different types of mounting kit to be ordered separately.

Technical data

Gray finestructured paint
CE
Zapaljivost F
CLASS 1
IP66
220-240V
50-60Hz
LED
* Please select the row to enable viewing and downloading of additional material.
Order code Description A/B/H[mm] WEIGHT [kg] FLUX [lm]* IP UGR Total Power [W] CCT [K] CRI Led Service Life
6112-B2XY TANGRAM HB2-B2 /740 360/340/95 5.50 9800 114° IP66 <25 70.0 4000 >70 100000h L80B10/ SDCM 3
6112-C0XY TANGRAM HB2-C /740 360/340/95 5.50 9800 110° IP66 70.0 4000 >70 100000h L80B10/ SDCM 3
6112-CYXY TANGRAM HB2-CY /740 360/340/95 5.50 9800 120° IP66 70.0 4000 >70 100000h L80B10/ SDCM 3
6112-M0XY TANGRAM HB2-M /740 360/340/95 5.50 9800 30° IP66 <25 70.0 4000 >70 100000h L80B10/ SDCM 3
6112-O0XY TANGRAM HB2-O /740 360/340/95 5.50 9800 102° IP66 <22 70.0 4000 >70 100000h L80B10/ SDCM 3
6112-RWXY TANGRAM HB2-RW /740 360/340/95 5.50 9800 50° IP66 <22 70.0 4000 >70 100000h L80B10/ SDCM 3
6112-WWXY TANGRAM HB2-WW /740 360/340/95 5.50 9800 65° IP66 <25 70.0 4000 >70 100000h L80B10/ SDCM 3
* Luminaire luminous flux and connected electrical load - initial tolerance of ±10 % (at ambient temperature of 25° C).
