Product details

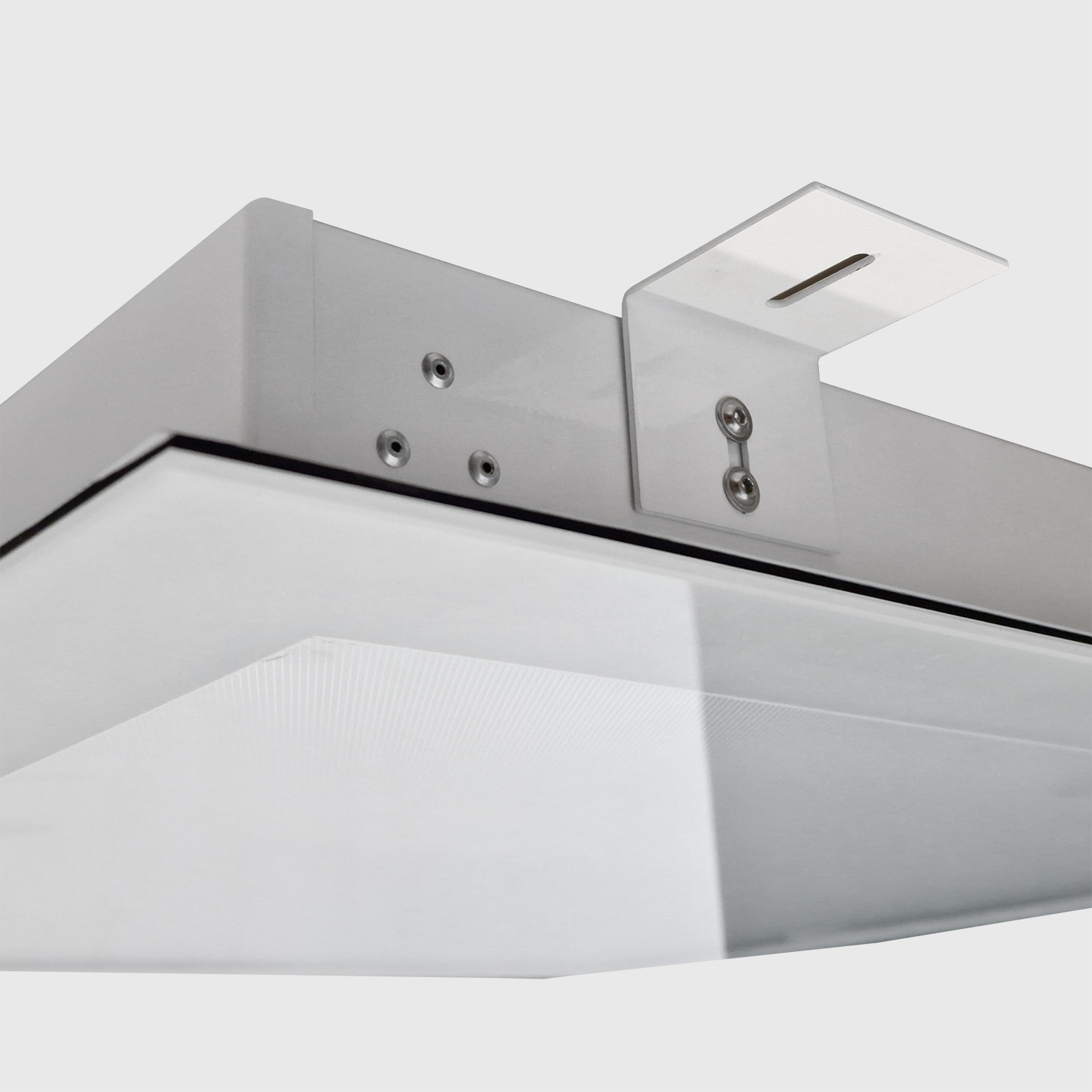

GENERAL Recessed luminaire for clean rooms with high energy efficiency

OPTICS The tempered mat glass without a visible frame provides increased protection and a smooth surface for easy maintenance.

HOUSING Housing is made of steel sheet. The final coating is white epoxy polyester powder of special reflective white colour. The construction ensures complete sealing with the ceiling. Easy mounting and maintenance from below. Steel cables provide additional safety.

APPLICATION in monolith and panel suspended ceilings.

EQUIPMENT Supplied with mounting kit.

ADDITIONAL This luminaire can be optionally equipped with an EM module, enabling operation in the case of a power failure, both with the proper autonomy and with the central battery system (CBS). Other light colour temperatures are available upon request.

Technical data

ceiling mounted
finish: white highly reflective paint
CE marking
mounting on normally flammable surfaces
electrical safety
ingress protection
lamp type
* Please select the row to enable viewing and downloading of additional material.
Order code Description A/B/H[mm] a/b/h[mm] WEIGHT [kg] FLUX [lm]* IP UGR Total Power [W] CCT [K] CRI Led Service Life
9041101XY CLEAN ROOM MG 625/840 623/623/61 605/605/110 8.50 5500 IP65 <22 42.0 4000 >80 60000h L90B10/ SDCM 3
* Luminaire luminous flux and connected electrical load - initial tolerance of ±10 % (at ambient temperature of 25° C).
