Product details

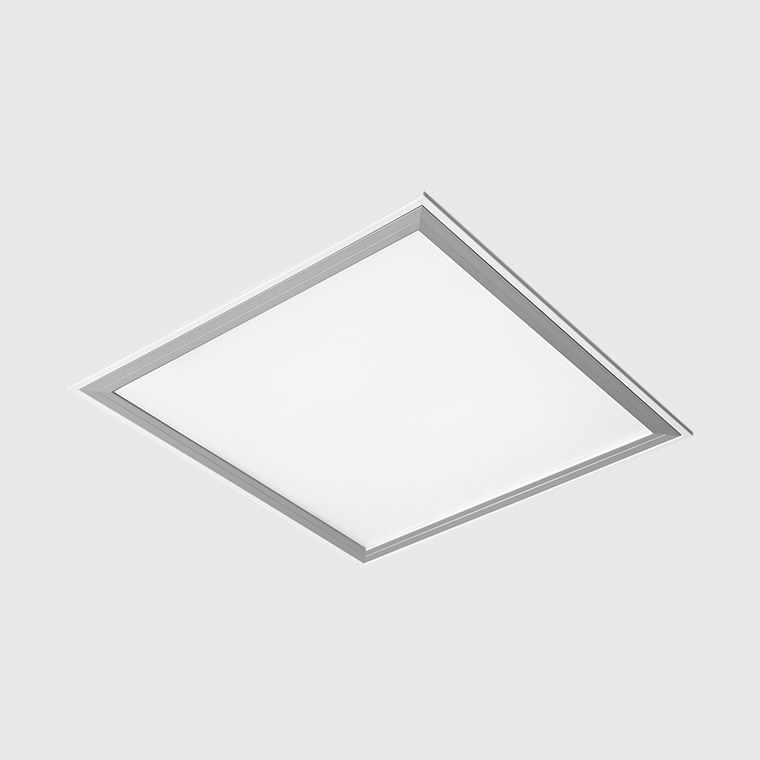

GENERAL Highly efficient recessed luminaire for direct illumination. Full visual comfort is ensured with the latest optical and electrical components.

OPTICS Highly transparent diffuser of microprismatic structure provides glare limitation and a uniform, diffused light. Opal foil provides a uniformly illuminated surface, without visible light sources. Protector of tempered glass provides a smooth surface for easy maintenance.

LIGHTING MANAGEMENT The choice of the adequate control gear enables lighting management.

HOUSING Housing is made of steel sheet. The final protection is an epoxy-polyester powder of a particular reflective white colour. The luminaire is sealed, while the construction and modality of mounting provide complete sealing with the ceiling.

APPLICATION The luminaire is intended for use in modular, as well as monolith and panel suspended ceilings.

EQUIPMENT Supplied with mounting kit.

ADDITIONAL This luminaire can be optionally equipped with an EM module, enabling operation in the case of a power failure, both with the proper autonomy and with the central battery system (CBS). Other light colour temperatures available upon request.

Technical data

recessed ceiling
finish: white highly reflective paint
CE marking
mounting on normally flammable surfaces
electrical safety
lamp type
* Please select the row to enable viewing and downloading of additional material.
Order code Description A/B/H[mm] a/b/h[mm] WEIGHT [kg] FLUX [lm]* IP UGR Total Power [W] CCT [K] CRI Led Service Life
9047119XY ETNA CR CDP 600 /840 HE 595/595/105 580/580/140 7.00 3722 IP55/IP65 <19 37.0 4000 >80 60000h L80B10 /SDCM 3
9047121XY ETNA CR CDP 600 /840 HO 595/595/105 580/580/140 7.00 5353 IP55/IP65 <19 54.0 4000 >80 60000h L80B10 /SDCM 3
9047123XY ETNA CR CDP 1200 /840 HE 1195/295/105 1180/280/140 7.00 3675 IP55/IP65 <19 35.0 4000 >80 60000h L80B10 /SDCM 3
9047125XY ETNA CR CDP 1200 /840 HO 1195/295/105 1180/280/140 7.00 5283 IP55/IP65 <19 53.0 4000 >80 60000h L80B10 /SDCM 3
* Luminaire luminous flux and connected electrical load - initial tolerance of ±10 % (at ambient temperature of 25° C).
