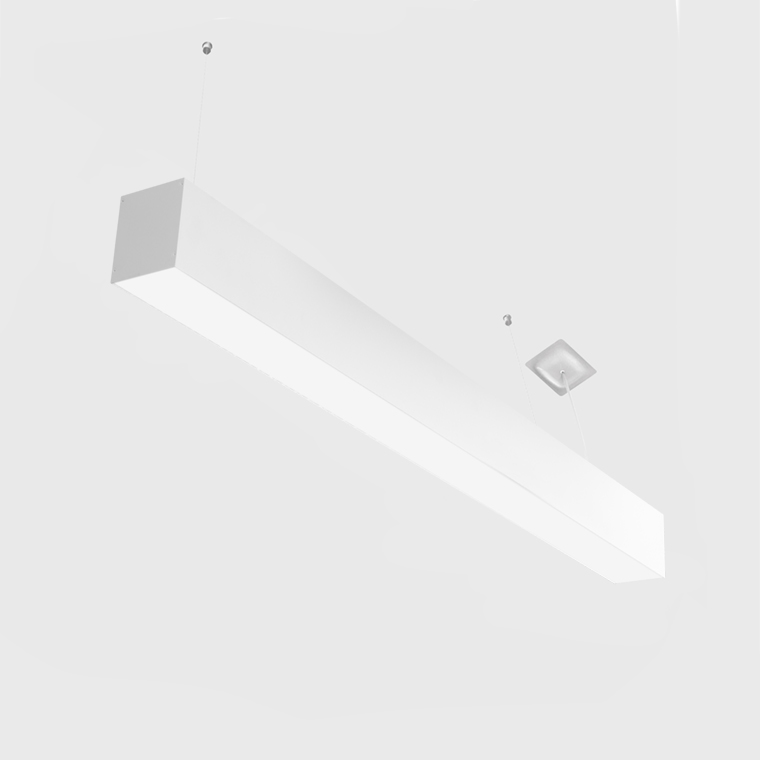

PRIMA M DO /S
![](/wp-content/uploads/buck-eksa/2844/led-suspended-luminaires-prima-m-do--s.jpg)
Product details
GENERAL High efficiency suspension luminaire for direct high quality illumination of office spaces.
OPTICS Opal diffuser provides a uniform diffusing light and a uniformly illuminated surface, without visible light sources.
LIGHTING MANAGEMENT The choice of appropriate control gear enables integration into lighting management systems.
HOUSING Luminaire of extruded aluminium. Finish: anodisation in natural aluminium colour or with epoxy polyester powder coating. Fine structured texture. Other colours available upon request.
FEATURES Option to form a long linear line adjusted to the space, in order to gain optimal light uniformity and aesthetic consistency of the interior.
EQUIPMENT Supplied with suspension kit.
ADDITIONAL To be ordered separately: EM module, enabling operation in the case of a power failure and other light colour temperatures.
Technical data
![suspended direct lighting suspended direct lighting](/wp-content/uploads/buck-eksa/symbols/2_suspended_direct_lighting.jpg)
![RAL9016 trafiic white powder coating fine textured RAL9016 trafiic white powder coating fine textured](/wp-content/uploads/buck-eksa/symbols/1_11_white_finestructured_paint.jpg)
![Sparkling grey powder coating fine textured Sparkling grey powder coating fine textured](/wp-content/uploads/buck-eksa/symbols/1_21_gray_finestructured_paint.jpg)
![RAL9005 black powder coating fine textured RAL9005 black powder coating fine textured](/wp-content/uploads/buck-eksa/symbols/1_31_black_finestructured_paint.jpg)
![](/wp-content/uploads/buck-eksa/symbols/1_91_anodises_aluminium.jpg)
![CE marking CE marking](/wp-content/uploads/buck-eksa/symbols/10_ce.jpg)
![mounting on normally flammable surfaces mounting on normally flammable surfaces](/wp-content/uploads/buck-eksa/symbols/7_f.jpg)
![electrical safety electrical safety](/wp-content/uploads/buck-eksa/symbols/8_class1.jpg)
![ingress protection ingress protection](/wp-content/uploads/buck-eksa/symbols/4_IP40.jpg)
![lamp type lamp type](/wp-content/uploads/buck-eksa/symbols/3_LED.jpg)
![voltage voltage](/wp-content/uploads/buck-eksa/symbols/6_220_240.jpg)
![frequency frequency](/wp-content/uploads/buck-eksa/symbols/6_50_60Hz.jpg)
Order code | Description | A/B/H[mm] | WEIGHT [kg] | FLUX [lm]* | IP | UGR | Total Power [W] | CCT [K] | CRI | Led Service Life |
---|---|---|---|---|---|---|---|---|---|---|
2844311XY | PRIMA M DO /S 900 /840 HE | 846/83/100 | 2.50 | 1274 | IP40 | <22 | 12.0 | 4000 | >80 | 60000h L80B10 /SDCM 3 |
2844341XY | PRIMA M DO /S 900 /840 HO | 846/83/100 | 2.50 | 2245 | IP40 | <25 | 22.0 | 4000 | >80 | 60000h L80B10 /SDCM 3 |
2844421XY | PRIMA M DO /S 1200 /840 HE | 1126/83/100 | 3.20 | 1699 | IP40 | <22 | 15.0 | 4000 | >80 | 60000h L80B10 /SDCM 3 |
2844441XY | PRIMA M DO /S 1200 /840 HO | 1126/83/100 | 3.20 | 2994 | IP40 | <25 | 29.0 | 4000 | >80 | 60000h L80B10 /SDCM 3 |
2844521XY | PRIMA M DO /S 1500 /840 HE | 1406/83/100 | 4.00 | 2124 | IP40 | <22 | 19.0 | 4000 | >80 | 60000h L80B10 /SDCM 3 |
2844541XY | PRIMA M DO /S 1500 /840 HO | 1406/83/100 | 4.00 | 3742 | IP40 | <25 | 36.0 | 4000 | >80 | 60000h L80B10 /SDCM 3 |
