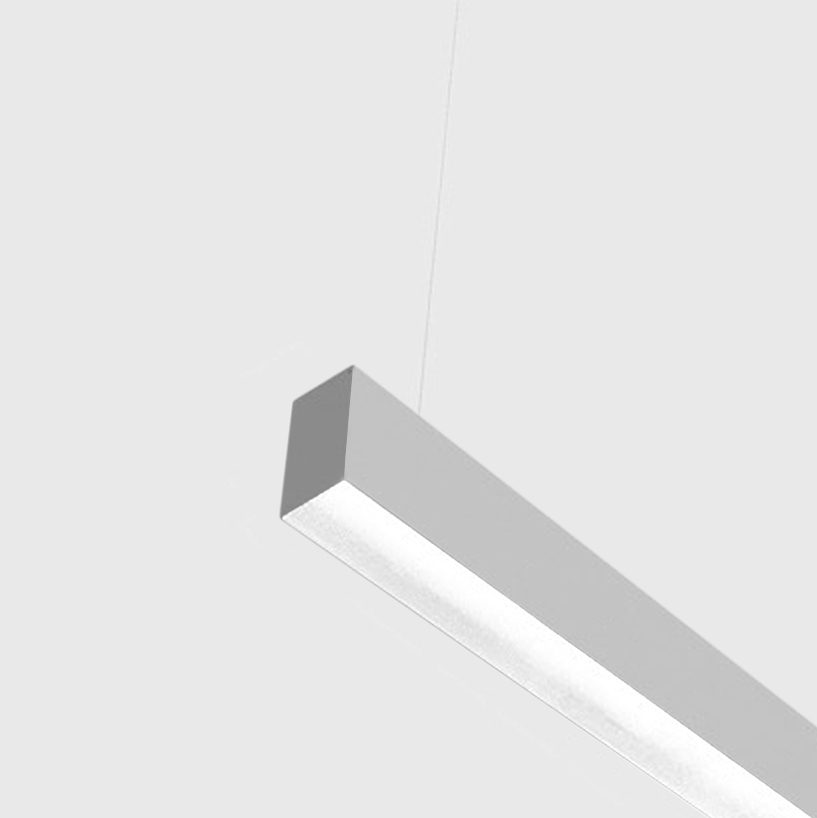

PRIMA S CDP /S

Product details

GENERAL High efficiency suspension luminaire for direct high quality illumination of office spaces.

OPTICS Highly transparent micro prismatic diffuser provides glare limitation and a uniform diffusing light. The opal foil provides a uniformly illuminated surface, without visible light sources. Transparent extruded PMMA protector provides a smooth surface for easy maintenance.

LIGHTING MANAGEMENT The choice of appropriate control gear enables integration into lighting management systems.

HOUSING Luminaire of extruded aluminium. Finish: anodisation in natural aluminium colour or with epoxy polyester powder coating. Fine structured texture. Other colours available upon request.

FEATURES Possibility to form a long linear line adjusted to the space, in order to gain optimal light uniformity and aesthetic consistency of the interior.

EQUIPMENT Supplied with suspension kit.

ADDITIONAL Dynamic White and other light colour temperatures available upon request.

Technical data

suspended direct lighting
RAL9016 trafiic white powder coating fine textured
Sparkling grey powder coating fine textured
RAL9005 black powder coating fine textured
CE marking
mounting on normally flammable surfaces
electrical safety
ingress protection
lamp type
voltage
frequency
* Please select the row to enable viewing and downloading of additional material.
Order code Description A/B/H[mm] WEIGHT [kg] FLUX [lm]* IP UGR Total Power [W] CCT [K] CRI Led Service Life
2811122XY PRIMA S CDP /S 900 /840 HE 854/60/110 3.00 954 IP40 <19 8.5 4000 >80 60000h L80B10 /SDCM 3
2811126XY PRIMA S CDP /S 900 /840 HO 854/60/110 3.00 1841 IP40 <22 17.0 4000 >80 60000h L80B10 /SDCM 3
2811132XY PRIMA S CDP /S 1200 /840 HE 1134/60/110 3.90 1272 IP40 <19 11.0 4000 >80 60000h L80B10 /SDCM 3
2811136XY PRIMA S CDP /S 1200 /840 HO 1134/60/110 3.90 2454 IP40 <22 23.0 4000 >80 60000h L80B10 /SDCM 3
2811142XY PRIMA S CDP /S 1500 /840 HE 1414/60/110 4.80 1590 IP40 <19 14.0 4000 >80 60000h L80B10 /SDCM 3
2811146XY PRIMA S CDP /S 1500 /840 HO 1414/60/110 4.80 3068 IP40 <22 28.0 4000 >80 60000h L80B10 /SDCM 3
2811152XY PRIMA S CDP /S 2400 /840 HE 2256/60/110 7.60 2544 IP40 <19 22.0 4000 >80 60000h L80B10 /SDCM 3
2811156XY PRIMA S CDP /S 2400 /840 HO 2256/60/110 7.60 4908 IP40 <22 46.0 4000 >80 60000h L80B10 /SDCM 3
* Luminaire luminous flux and connected electrical load - initial tolerance of ±10 % (at ambient temperature of 25° C).
