Product details

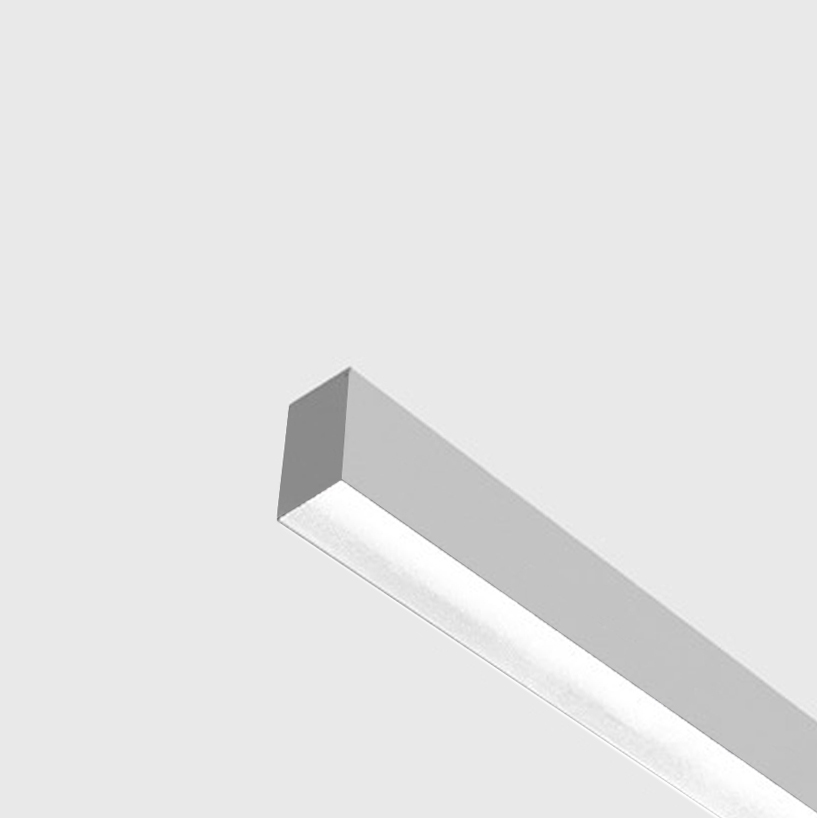

GENERAL High efficiency surface mounted luminaire for direct high quality illumination of office spaces.

OPTICS Highly transparent micro prismatic diffuser provides glare limitation and a uniform diffusing light. The opal foil provides a uniformly illuminated surface, without visible light sources. Transparent extruded PMMA protector provides a smooth surface for easy maintenance.

LIGHTING MANAGEMENT The choice of appropriate control gear enables integration into lighting management systems.

HOUSING Luminaire of extruded aluminium. Finish: anodisation in natural aluminium colour or with epoxy polyester powder coating. Fine structured texture. Other colours available upon request.

FEATURES Possibility to form a long linear shape adjusted to the space, in order to gain optimal light uniformity and aesthetic consistency of the interior.

ADDITIONAL Dynamic White and other light colour temperatures available upon request.

Technical data

ceiling mounted
finish:white finestructured paint
finish: gray finestructured paint
finish: black finestructured paint
CE marking
mounting on normally flammable surfaces
electrical safety
ingress protection
lamp type
voltage
frequency
* Please select the row to enable viewing and downloading of additional material.
Order code Description A/B/H[mm] WEIGHT [kg] FLUX [lm]* IP UGR Total Power [W] CCT [K] CRI Led Service Life
2339112XY PRIMA S CDP 600 /840 HE 566/60/110 2.30 636 IP40 <19 6.0 4000 >80 60000h L80B10 /SDCM 3
2339116XY PRIMA S CDP 600 /840 HO 566/60/110 2.30 1227 IP40 <22 11.5 4000 >80 60000h L80B10 /SDCM 3
2339122XY PRIMA S CDP 900 /840 HE 846/60/110 3.00 954 IP40 <19 8.5 4000 >80 60000h L80B10 /SDCM 3
2339126XY PRIMA S CDP 900 /840 HO 846/60/110 3.00 1841 IP40 <19 17.0 4000 >80 60000h L80B10 /SDCM 3
2339132XY PRIMA S CDP 1200 /840 HE 1126/60/110 3.90 1272 IP40 <19 11.0 4000 >80 60000h L80B10 /SDCM 3
2339136XY PRIMA S CDP 1200 /840 HO 1126/60/110 3.90 2454 IP40 <22 23.0 4000 >80 60000h L80B10 /SDCM 3
2339142XY PRIMA S CDP 1500 /840 HE 1406/60/110 4.80 1590 IP40 <19 14.0 4000 >80 60000h L80B10 /SDCM 3
2339146XY PRIMA S CDP 1500 /840 HO 1406/60/110 4.80 3068 IP40 <22 28.0 4000 >80 60000h L80B10 /SDCM 3
2339152XY PRIMA S CDP 2400 /840 HE 2248/60/110 7.60 2544 IP40 <19 22.0 4000 >80 60000h L80B10 /SDCM 3
2339156XY PRIMA S CDP 2400 /840 HO 2248/60/110 7.60 4908 IP40 <22 46.0 4000 >80 60000h L80B10 /SDCM 3
* Luminaire luminous flux and connected electrical load - initial tolerance of ±10 % (at ambient temperature of 25° C).
** Replace XY with the color code when ordering ( e.g. 11 white, 21 grey, 31 black).
