Product details

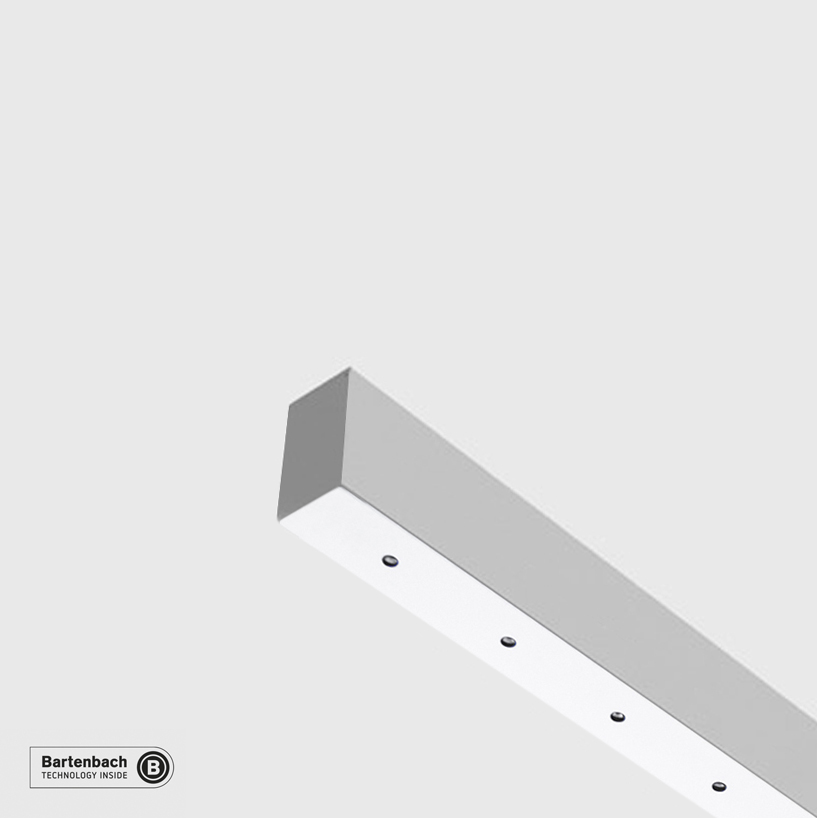

GENERAL High efficiency surface mounted luminaire for direct illumination.

OPTICS Lens made of PMMA, retracted from the bottom surface of the luminaire, emitting light through perforation on the surface. Retraction from the perforation enables invisibility of the light source, providing full visual comfort.

LIGHTING MANAGEMENT The choice of appropriate control gear enables integration into lighting management systems, including dynamic white function.

HOUSING Luminaire of extruded aluminium. Finish: anodisation in natural aluminium colour or with epoxy polyester powder coating. Fine structured texture. Other colours available upon request.

FEATURES Possibility to form a long linear shape adjusted to the space, in order to gain optimal light uniformity and aesthetic consistency of the interior.

ADDITIONAL Dynamic White and other light colour temperatures available upon request.

Technical data

ceiling mounted
RAL9016 trafiic white powder coating fine textured
Sparkling grey powder coating fine textured
RAL9005 black powder coating fine textured
CE marking
mounting on normally flammable surfaces
electrical safety
ingress protection
lamp type
voltage
frequency
* Please select the row to enable viewing and downloading of additional material.
Order code Description A/B/H[mm] WEIGHT [kg] FLUX [lm]* IP UGR Total Power [W] CCT [K] CRI Led Service Life
2318111XY PRIMA S LFO 900 /840 846/60/110 2.80 1542 60° IP20 <13 22.0 4000 >80 50000h L80B10 /SCDM3
2318121XY PRIMA S LFO 1200 /840 1126/60/110 3.60 2056 60° IP20 <13 29.0 4000 >80 50000h L80B10 /SCDM3
2318131XY PRIMA S LFO 1500 /840 1406/60/110 4.30 2570 60° IP20 <13 36.0 4000 >80 50000h L80B10 /SCDM3
2318141XY PRIMA S LFO 2400 /840 2248/60/110 7.00 4111 60° IP20 <13 57.0 4000 >80 50000h L80B10 /SCDM3
* Luminaire luminous flux and connected electrical load - initial tolerance of ±10 % (at ambient temperature of 25° C).
