URBAN LINE
Product details

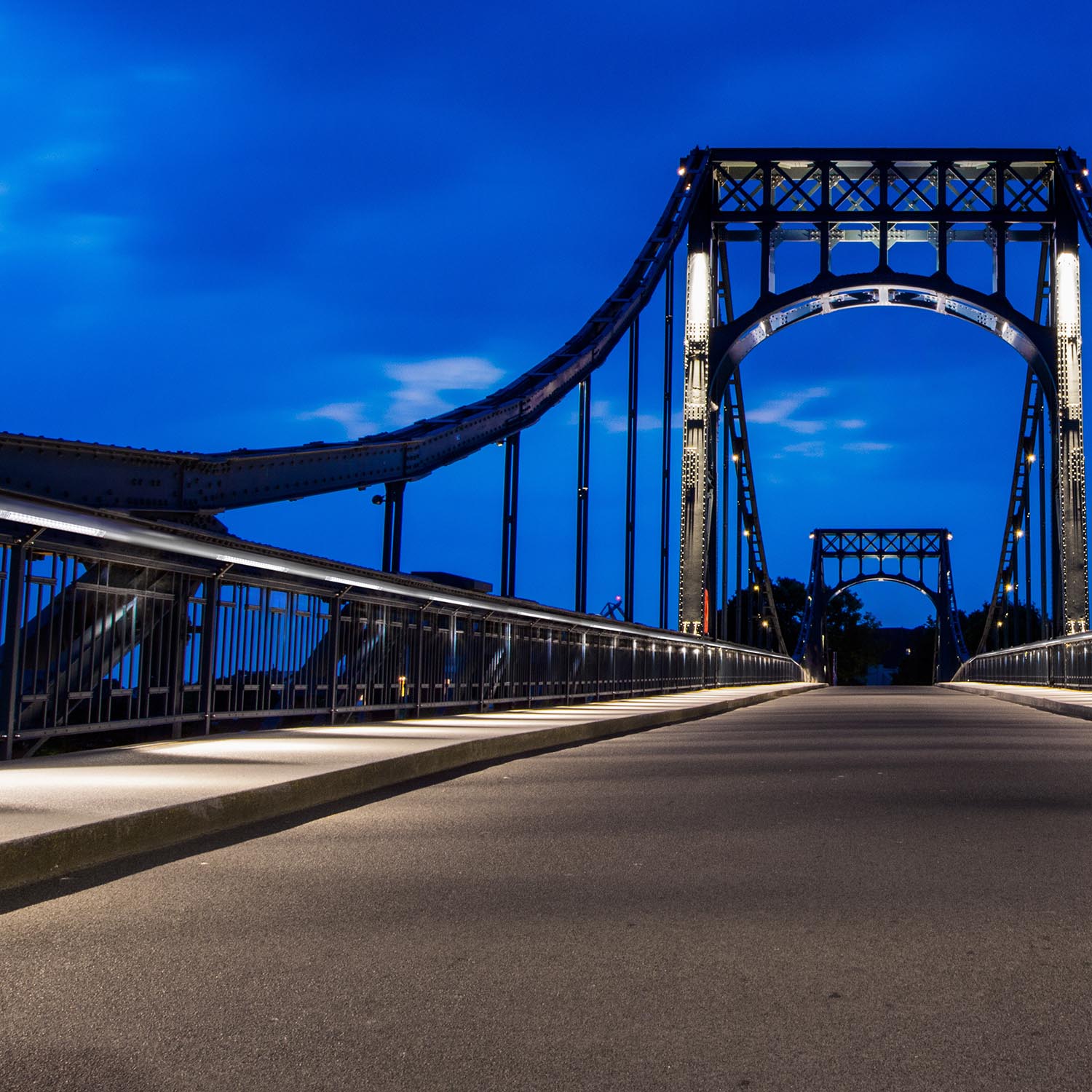

GENERAL Urban linear luminaire for architectural and urban lighting applications, designed for guidance and safety lighting in public spaces. Intended for integration into stainless-steel handrails and similar linear structures, it is suitable for pedestrian areas, bridges, pathways, underpasses, and transport facilities. The durability, energy efficiency and reliable luminaire performance ensure low operating and maintenance costs in demanding outdoor environments.
OPTICS Appropriate light distribution is generated by the polycarbonate luminaire housing itself, which is designed as a functional optical unit. The system provides uniform linear lighting with controlled luminance, ensuring visual comfort and safe guidance in pedestrian and public space lighting applications.
HOUSING The luminaire housing is made of polycarbonate and is highly protected – IP66, IK07, ensuring resistance to environmental influences and long-term performance in outdoor lighting and urban infrastructure projects.
LIGHTING MANAGEMENT The control system provides power and communication with luminaires. Half-duplex communication between control units and luminaires is performed via power line cabling, reducing additional wiring and enabling efficient integration into smart urban lighting systems and infrastructure networks.
In addition, an ON/OFF version is available, offering a simplified and cost-effective solution for projects where monitoring and advanced control are not required. This option is particularly suitable for standard public lighting applications, providing reliable operation with reduced system complexity and lower investment costs.

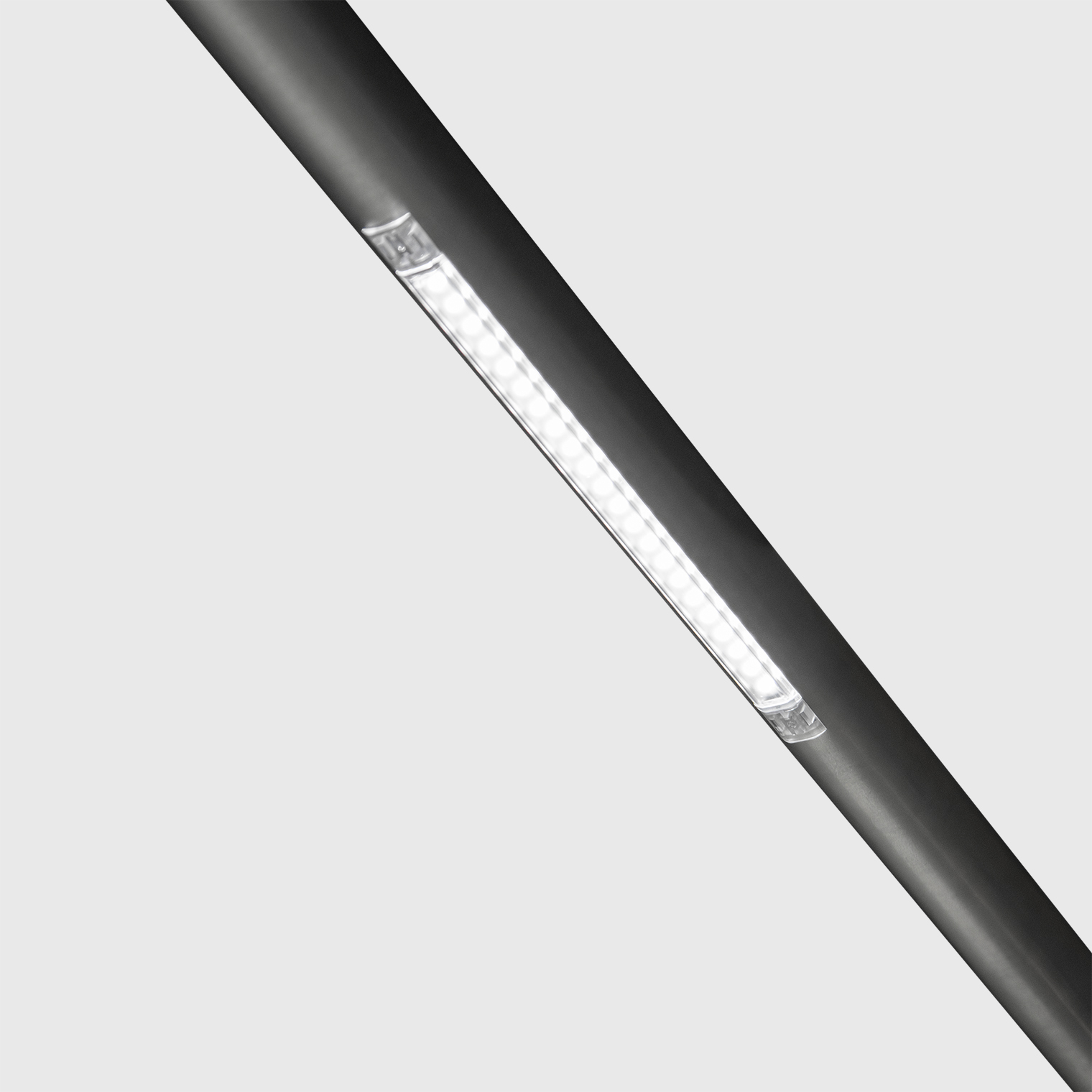

FEATURES The luminaire system consists of a luminaire integrated into a handrail or linear architectural element, forming a continuous or segmented handrail lighting solution. The luminaire can be easily installed into the handrail without tools. The handrail is made of stainless steel – a highly durable and corrosion-resistant material, suitable for long-term use in outdoor and public environments such as bridges, walkways and transport infrastructure.
Technical data
| Order code | Description | A/B/H[mm] | a/b/h[mm] | WEIGHT [kg] | FLUX [lm]* | IP | Total Power [W] | CCT [K] | CRI | Led Service Life |
|---|---|---|---|---|---|---|---|---|---|---|
| 8110101XY | URBAN LINE | 266/18/21 | 260/14.2/20.6 | 0.07 | 110 | IP66 | 1.0 | 4000 | >70 | 60000h L80 B10 /SDCM 3 |
