VISION ASF

Product details

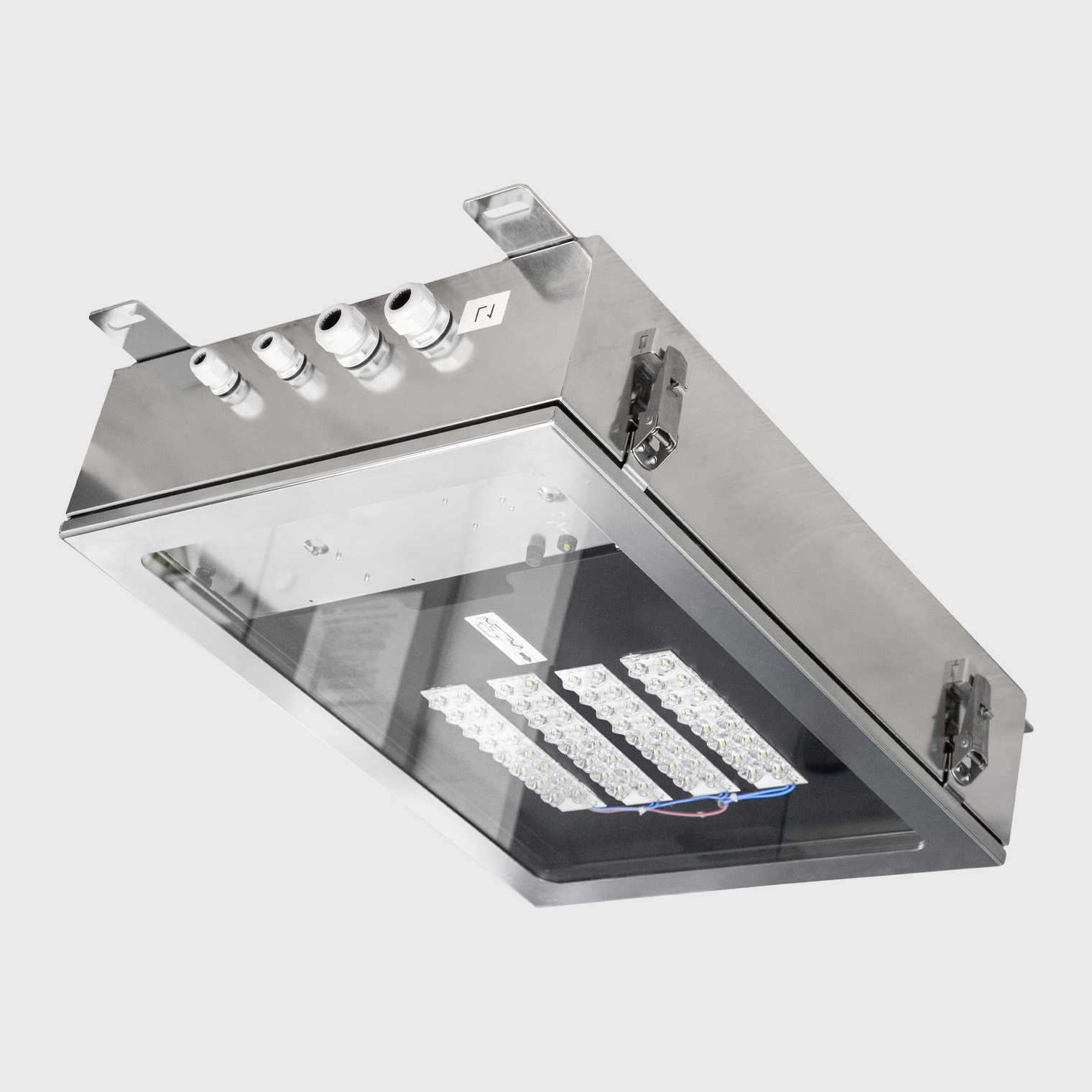

GENERAL  Tunnel lighting luminaire, part of BUCK smart tunnel illumination system. Appropriate for various tunnel types and other harsh environments. Its longevity, energy efficiency and overall reliable performance ensure low usage costs.

OPTICS  A wide range of PMMA lenses assures optimal lighting solution for any tunnel situation. Required lighting intensities and uniformities are ensured while high energy efficiency is achieved.
Basically, two types of light distributions are used for tunnel lighting:
SYM – symmetric light distribution is used for interior and entrance zone luminaires;
ASY – asymmetric light distribution is used for entrance and exit zone luminaires as counter-beam or pro-beam application.
The optics protector is made of 4 mm tempered glass.

HOUSING  Design concept with easy opening doors and servicing on site. Made of stainless steel 1.4571 / AISI 316 Ti (electrochemically polished and passivated for highest corrosion resistance). The heatsink is an efficient aluminium alloy with powder coating protection.

LIGHTING MANAGEMENT  Smart LED lighting solutions for tunnels and subways include fully integrated control systems to monitor and manage various factors such as levels of light outside and inside the tunnel, speed and density of traffic, various tunnel zones, motion, presence, speed detection… Buck provides various solutions for luminaires control such as analogue current loop 4-20 mA interface (CLi), discrete-time coded 230 V step dim interface (SDi), digital bidirectional RS-485 interface (RSi).

FEATURES  The luminaire system consists of an opening housing with a lighting unit and driver unit for powering LED light sources and a junction block with through-wiring functionality. The lighting unit and driver unit are separably serviceable on site without tools. Illumination performance and traffic safety in different types of tunnels are achieved with appropriately chosen optics. Easy mounting with adjustable brackets. Longevity is assured by advanced protection against corrosion, impact and overheating

Technical data

street lighting
electropolishing surface
CE marking
mounting on normally flammable surfaces
electrical safety
ingress protection
impact protection
operating temperature range
lamp type
voltage
frequency
* Please select the row to enable viewing and downloading of additional material.
Order code Description A/B/H[mm] WEIGHT [kg] FLUX [lm]* IP Total Power [W] CCT [K] CRI Led Service Life
6425102XY VISION ASF 2 SYM 690/500/173 20.00 12256 IP66 92.0 4000 >70 100000h L90B10 / SDCM3
6425103XY VISION ASF 3 SYM 690/500/173 20.50 16344 IP66 119.0 4000 >70 100000h L90B10 / SDCM3
6425104XY VISION ASF 4 SYM 690/500/173 21.00 19222 IP66 136.0 4000 >70 100000h L90B10 / SDCM3
6425106XY VISION ASF 6 SYM 690/500/173 22.00 24968 IP66 178.0 4000 >70 100000h L90B10 / SDCM3
6425112XY VISION ASF 12 SYM 690/500/173 22.00 34776 IP66 232.0 4000 >70 100000h L90B10 / SDCM3
6425203XY VISION ASF 3 ASY 690/500/173 20.50 15325 IP66 116.0 4000 >70 100000h L90B10 / SDCM3
6425204XY VISION ASF 4 ASY 690/500/173 21.00 18236 IP66 135.0 4000 >70 100000h L90B10 / SDCM3
6425206XY VISION ASF 6 ASY 690/500/173 22.00 23935 IP66 173.0 4000 >70 100000h L90B10 / SDCM3
6425208XY VISION ASF 8 ASY 690/500/173 22.50 26860 IP66 189.0 4000 >70 100000h L90B10 / SDCM3
6425212XY VISION ASF 12 ASY 690/500/173 25.50 33728 IP66 232.0 4000 >70 100000h L90B10 / SDCM3
* Luminaire luminous flux and connected electrical load - initial tolerance of ±10 % (at ambient temperature of 25° C).
** Replace XY with the color code when ordering ( e.g. 11 white, 21 grey, 31 black).
