Product details

GENERAL  Tunnel lighting LED retrofit kit, part of BUCK smart tunnel illumination system. Appropriate for various tunnel types and other harsh environments. Its longevity, energy efficiency and overall reliable performance ensure low usage costs.

OPTICS  A wide range of PMMA lenses assures optimal lighting solution for any tunnel situation. Required lighting intensities and uniformities are ensured while high energy efficiency is achieved.

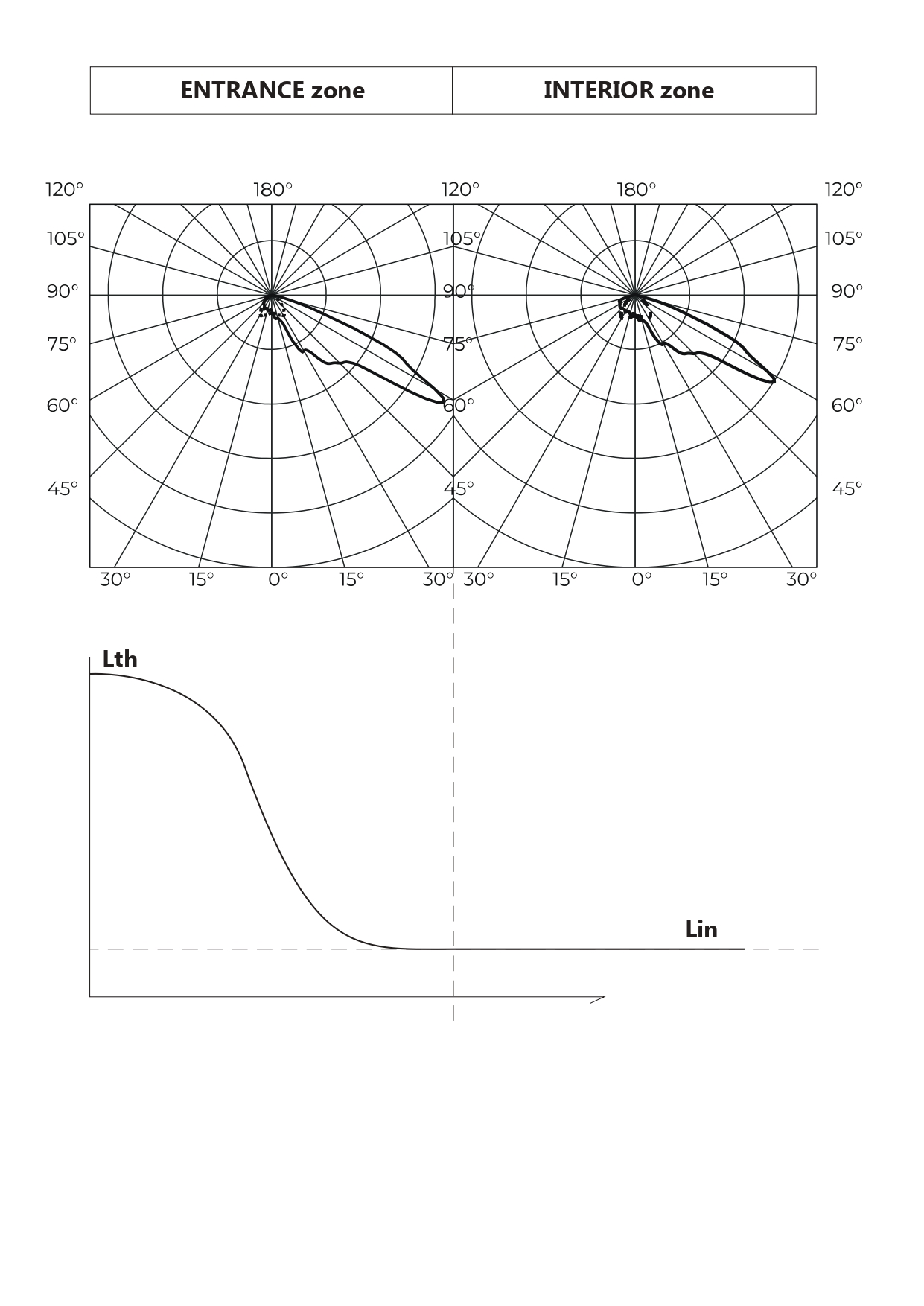

Basically, two types of light distributions are used for tunnel lighting:
SYM – symmetric light distribution is used for interior and entrance zone luminaires;
ASY – asymmetric light distribution is used for entrance and exit zone luminaires as counter-beam or pro-beam application.

LIGHTING MANAGEMENT  Smart LED lighting solutions for tunnels and subways include fully integrated control systems to monitor and manage various factors such as levels of light outside and inside the tunnel, speed and density of traffic, various tunnel zones, motion, presence, speed detection… Buck provides various solutions for luminaires control such as analogue current loop 4-20 mA interface (CLi), discrete-time coded 230 V step dim interface (SDi), digital bidirectional RS-485 interface (RSi).

FEATURES  Retrofit kit consists of a lighting unit and driver unit for powering LED light sources. Easy mounting with only two clicks saves valuable time for on-site installation. Illumination performance and traffic safety in different types of tunnels are achieved with appropriately chosen optics. Longevity is assured by using high-efficiency outdoor LED modules that are suitable for harsh and humid ambient conditions.

Technical data

street lighting
lamp type
* Please select the row to enable viewing and downloading of additional material.
Order code Description A/B/H[mm] WEIGHT [kg] FLUX [lm]* IP Total Power [W] CCT [K] CRI Led Service Life
6429102XY INSERT ASF 2 SYM 640/465/160 5.00 12256 - 92.0 4000 >70 100000h L90B10 / SDCM3
6429103XY INSERT ASF 3 SYM 640/465/160 5.50 16344 - 119.0 4000 >70 100000h L90B10 / SDCM3
6429104XY INSER ASF 4 SYM 640/465/160 6.00 19222 - 136.0 4000 >70 100000h L90B10 / SDCM3
6429106XY INSERT ASF 6 SYM 640/465/160 5.50 24968 - 178.0 4000 >70 100000h L90B10 / SDCM3
6429112XY INSERT ASF 12 SYM 620/410/160 11.00 34776 - 232.0 4000 >70 100000h L90B10 / SDCM3
6429203XY INSERT ASF 3 ASY 640/465/160 5.50 15325 - 116.0 4000 >70 100000h L90B10 / SDCM3
6429204XY INSERT ASF 4 ASY 640/465/160 6.00 18236 - 135.0 4000 >70 100000h L90B10 / SDCM3
6429206XY INSERT ASF 6 ASY 640/465/160 5.50 23935 - 173.0 4000 >70 100000h L90B10 / SDCM3
6429208XY INSERT ASF 8 ASY 640/465/160 5.50 26860 - 189.0 4000 >70 100000h L90B10 / SDCM3
6429212XY INSERT ASF 12 ASY 620/410/160 11.00 33728 - 232.0 4000 >70 100000h L90B10 / SDCM3
* Luminaire luminous flux and connected electrical load - initial tolerance of ±10 % (at ambient temperature of 25° C).
