Product details

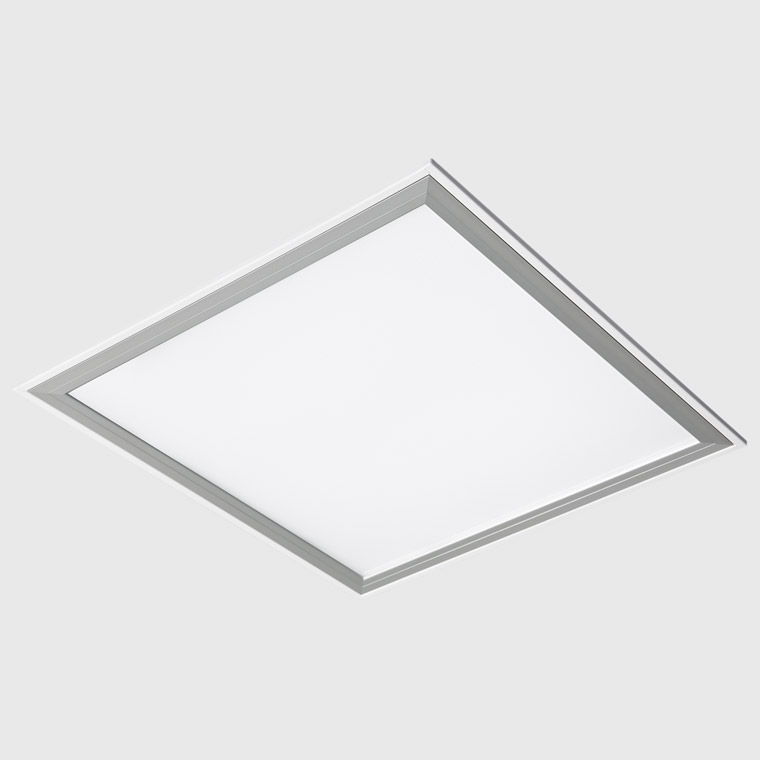

GENERAL Highly efficient recessed luminaire for direct illumination. Fraunhofer IPA Institute certified to ISO Class 1, according to EN14644-1, hygienic design up to GMP (Good Manufacturing Practices) class C.
OPTICS Opal diffuser made of polymethyl methacrylate (PMMA), specially formulated to meet requirements for optical quality, homogeneity and specific surface properties. Ideal for use in the food industry, due to the fact that it does not contain toxic substances.
The frame of extruded aluminium of special construction, provides a high sealed degree of the luminaire, while forming a flat surface simple for maintenance.
LIGHTING MANAGEMENT The choice of adequate control gear enables lighting management.
HOUSING Housing is made of steel sheet 0.8mm thick. The final coating is a special antibacterial white epoxy polyester powder, resistant to aggressive cleaning agents.
APPLICATION in monolith, panel and modular suspended ceilings.
EQUIPMENT Supplied with mounting kit.
ADDITIONAL To be ordered separately: EM1 or EM3 module for emergency operation in case of power failure, with corresponding autonomy. Zinc primer housing coating for corrosion prevention or other light colour temperatures are available upon request.
Technical data
| Order code | Description | A/B/H[mm] | a/b/h[mm] | WEIGHT [kg] | FLUX [lm]* | IP | UGR | Total Power [W] | CCT [K] | CRI | Led Service Life |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 9022119XY | CLEAN ROOM DO 600 /840 HE | 595/595/105 | 580/580/140 | 8.00 | 3444 | IP65 | <22 | 24.0 | 4000 | >80 | 60000h L90B10/ SDCM3 |
| 9022121XY | CLEAN ROOM DO 600 /840 HO | 595/595/105 | 580/580/140 | 8.00 | 4789 | IP65 | <22 | 34.0 | 4000 | >80 | 60000h L90B10/ SDCM 3 |
| 9022127XY | CLEAN ROOM DO 1200 /840 HE | 1195/295/105 | 1180/280/140 | 9.00 | 3360 | IP65 | <22 | 24.0 | 4000 | >80 | 60000h L90B10 /SDCM 3 |
| 9022128XY | CLEAN ROOM DO 1200 /840 HO | 1195/295/105 | 1180/280/140 | 9.00 | 4672 | IP65 | <22 | 34.0 | 4000 | >80 | 60000h L90B10 /SDCM 3 |
| 9022219XY | CLEAN ROOM DO 600 /940 HE | 595/595/105 | 580/580/140 | 8.00 | 3460 | IP65 | <22 | 25.0 | 4000 | >90 | 60000h L90B10/ SDCM3 |
| 9022221XY | CLEAN ROOM DO 600 /940 HO | 595/595/105 | 580/580/140 | 8.00 | 4792 | IP65 | <22 | 36.0 | 4000 | >90 | 60000h L90B10/ SDCM3 |
| 9022227XY | CLEAN ROOM DO 1200 /940 HE | 1195/295/105 | 1180/280/140 | 9.00 | 3376 | IP65 | <22 | 25.0 | 4000 | >90 | 60000h L90B10/ SDCM3 |
| 9022228XY | CLEAN ROOM DO 1200 /940 HO | 1195/295/105 | 1180/280/140 | 9.00 | 4675 | IP65 | <22 | 36.0 | 4000 | >90 | 60000h L90B10/ SDCM3 |
