Product details

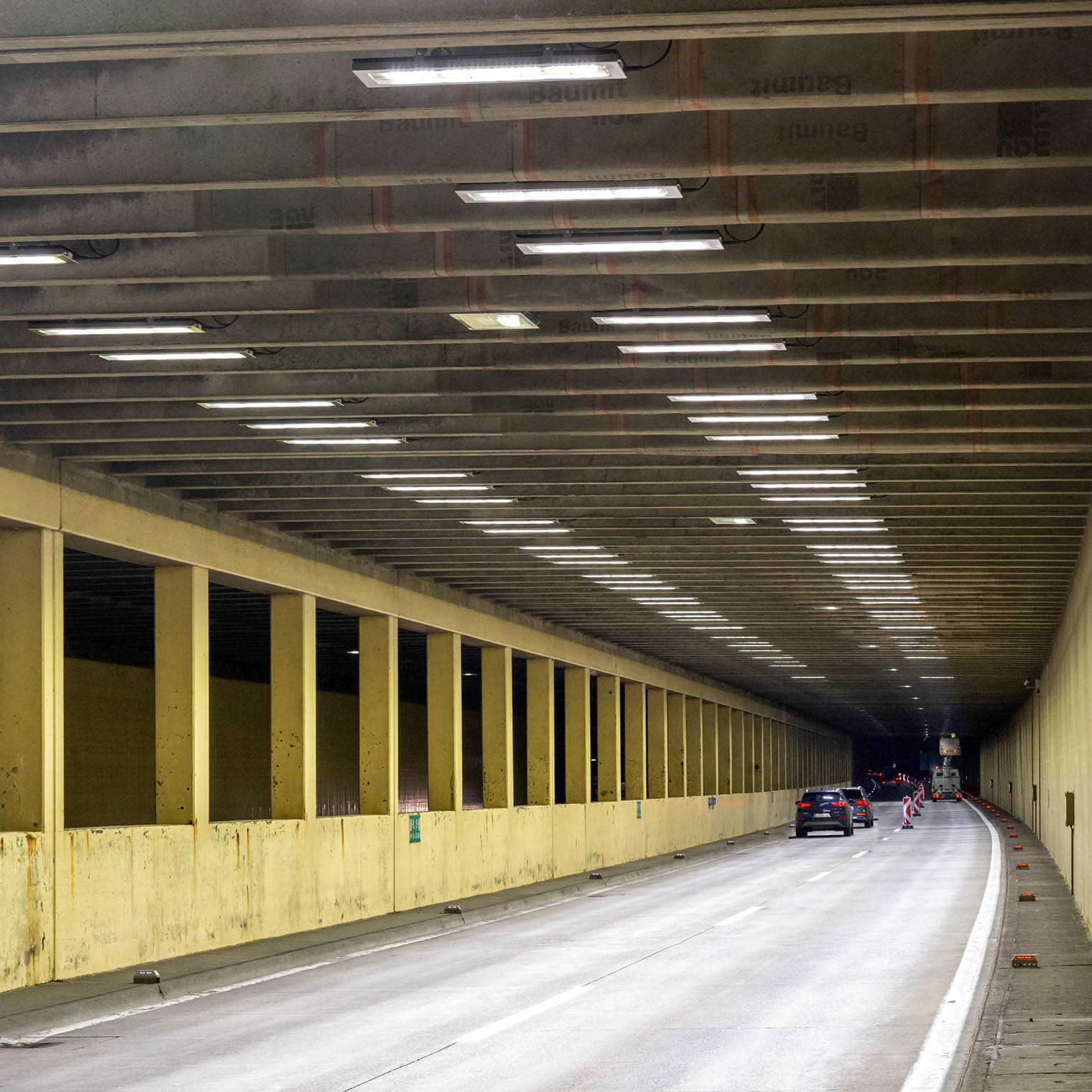

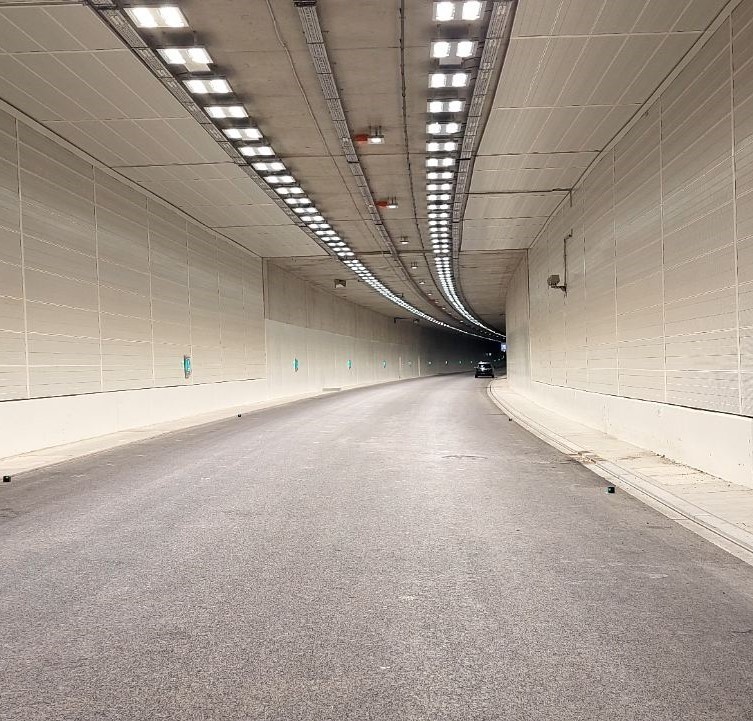

GENERAL  Tunnel lighting luminaire, part of BUCK smart tunnel illumination system. Appropriate for various tunnel types and other harsh environments. It’s longevity, energy efficiency and overall reliable performance ensure low usage costs.

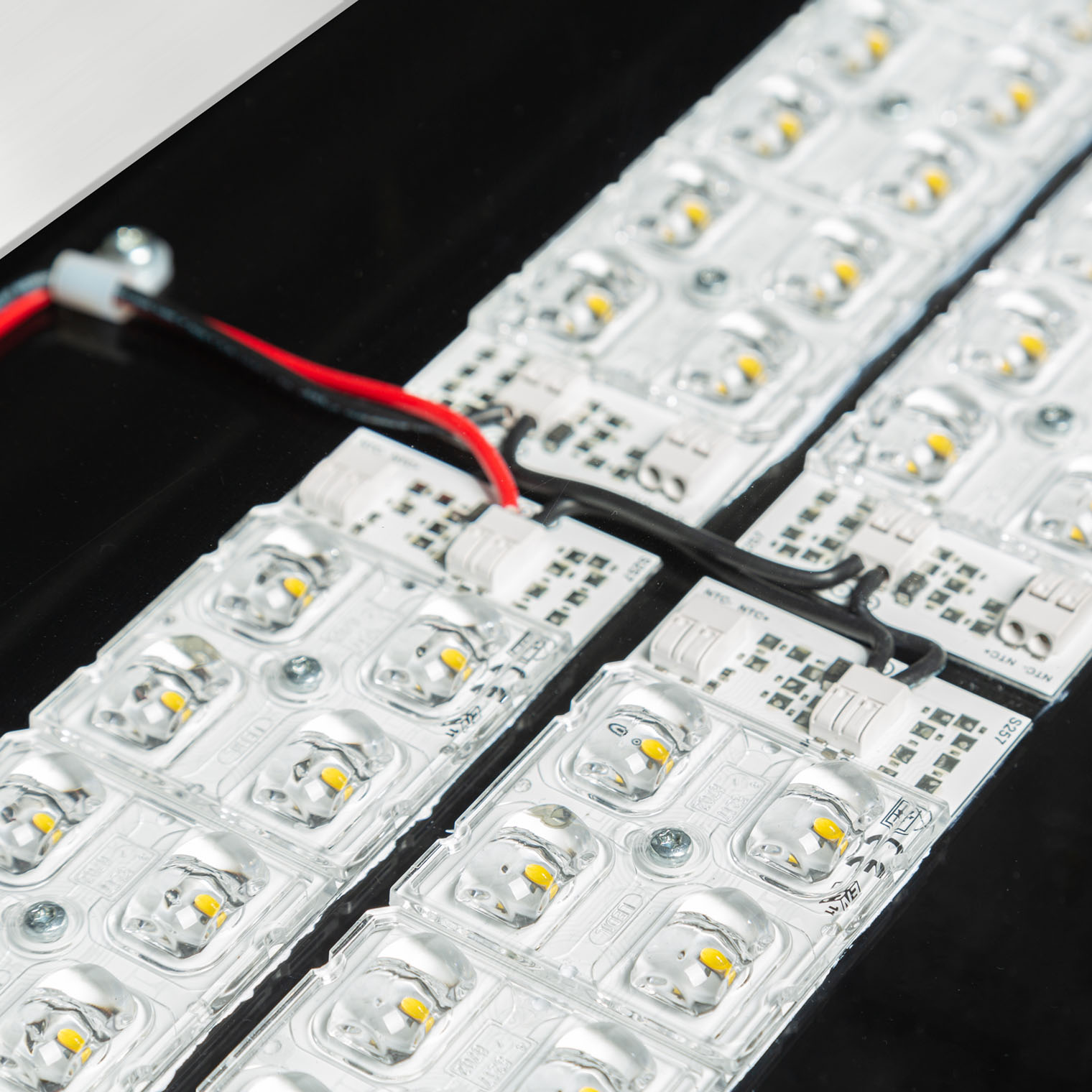

OPTICS  A wide range of PMMA lenses assures optimal lighting solution for any tunnel situation. Required lighting intensities and uniformities are ensured while high energy efficiency is achieved.
Basically, two types of light distributions are used for tunnel lighting:
SYM – symmetric light distribution is used for interior and entrance zone luminaires;
ASY – asymmetric light distribution is used for entrance and exit zone luminaires as counterbeam or probeam application.
Optics protector is made of 5 mm tempered glass.

HOUSING  Made of stainless steel 1.4571 / AISI 316 Ti (electrochemically polished and passivated for highest resistance to corrosion) and extruded aluminium alloy heatsink with conversion protection. The heatsinks are isolated from stainless steel housing, so there is no possibility of galvanic corrosion.

LIGHTING MANAGEMENT  Smart LED lighting solutions for tunnels and subways include fully integrated control systems to monitor and manage various factors such as levels of light outside and inside the tunnel, speed and density of traffic, various tunnel zones, motion, presence, speed detection… Buck provides various solutions for luminaires control such as analog current loop 4-20 mA interface (CLi), discrete time coded 230 V step dim interface (SDi), digital bidirectional RS-485 interface (RSi).

FEATURES  Luminaire system consists of lighting units (VISION) and drivers for powering of LED light source. Drivers can be dislocated in the electro-niche, or in the junction boxes (JB) with through-wiring functionality. Performance and safety in different types of tunnels are achieved with a properly chosen optics from a wide range of light distributions. Easy mounting with fixed or adjustable brackets. Longevity assured by advanced protection against corrosion, impact and overheating.

Technical data

street lighting
CE marking
mounting on normally flammable surfaces
electrical safety
ingress protection
impact protection
lamp type
* Please select the row to enable viewing and downloading of additional material.
Order code Description A/B/H[mm] WEIGHT [kg] FLUX [lm]* IP Total Power [W] CCT [K] CRI Led Service Life
6423102XY VISION 2 SYM 440x296x60 6.70 11460 IP66 90.0 4000 >70 100000h L90B10 /SDCM3
6423103XY VISION 3 SYM 440x296x60 6.70 17190 IP66 135.0 4000 >70 100000h L90B10 /SDCM3
6423104XY VISION 4 SYM 690x296x60 9.00 22921 IP66 180.0 4000 >70 100000h L90B10 /SDCM3
6423106XY VISION 6 SYM 690x296x60 9.50 34382 IP66 271.0 4000 >70 100000h L90B10 /SDCM3
6423108XY VISION 8 SYM 690x591x60 16.00 45843 IP66 361.0 4000 >70 100000h L90B10 /SDCM3
6423110XY VISION 10 SYM 690x591x60 16.20 57304 IP66 452.0 4000 >70 100000h L90B10 /SDCM3
6423112XY VISION 12 SYM 690x591x60 16.50 68765 IP66 542.0 4000 >70 100000h L90B10 /SDCM3
6423203XY VISION 3 ASY 440x296x60 6.70 16576 IP66 135.0 4000 >70 100000h L90B10 /SDCM3
6423204XY VISION 4 ASY 690x296x60 9.00 22103 IP66 180.0 4000 >70 100000h L90B10 /SDCM3
6423206XY VISION 6 ASY 690x296x60 9.50 33154 IP66 271.0 4000 >70 100000h L90B10 /SDCM3
6423208XY VISION 8 ASY 690x591x60 16.00 44206 IP66 361.0 4000 >70 100000h L90B10 /SDCM3
6423210XY VISION 10 ASY 690x591x60 16.20 55258 IP66 452.0 >70 100000h L90B10 /SDCM3
6423212XY VISION 12 ASY 690x591x60 16.50 66309 IP66 542.0 4000 >70 100000h L90B10 /SDCM3
* Luminaire luminous flux and connected electrical load - initial tolerance of ±10 % (at ambient temperature of 25° C).
** Replace XY with the color code when ordering ( e.g. 11 white, 21 grey, 31 black).
